Ultimate High-Mix Production
The ii-N2 platform is the perfect combination of performance and flexibility. Equipped with 2 Tornado heads, this machine offers a large loading capacity while providing the trademark performance expected of Europlacer equipment. Discover our dedicated range to high-mix low volume placing solutions.
Description
As you might expect from Europlacer, the SMT placement equipment iineo is a single elegant structure capable of almost unlimited configurations. The capability that comes as standard within the machine is however the most important aspect of this platform:
On most of pick and place machines, the heads can only place a specific range of components. It certainly just makes life complicated. As a result you can’t effectively balance that single machine, let alone a complete line. That’s why the SMT placement machine iineo has genuine line balancing capabilities. All heads and all nozzle positions capable of placing the full range of components. Above all, you don’t have to compromise on feeder positions or throughput speed, production can run as efficiently as is possible.

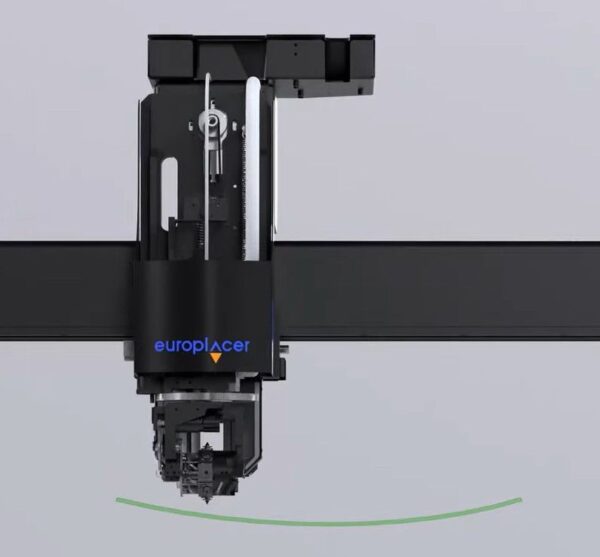

Firstly iineo is fitted with linear motors and digital cameras. In addition, it utilises Europlacer’s unique and proven core features such as Integrated IntelligenceTM , intelligent feeders, smart nozzles and 3DPS. 3DPS provides guaranteed closed loop control of pick and placement forces for all components. Importantly, iineo is able to produce very large boards, as it is capable of being configured to manage 1610mm x 600mm size substrates.
Features / Benefits

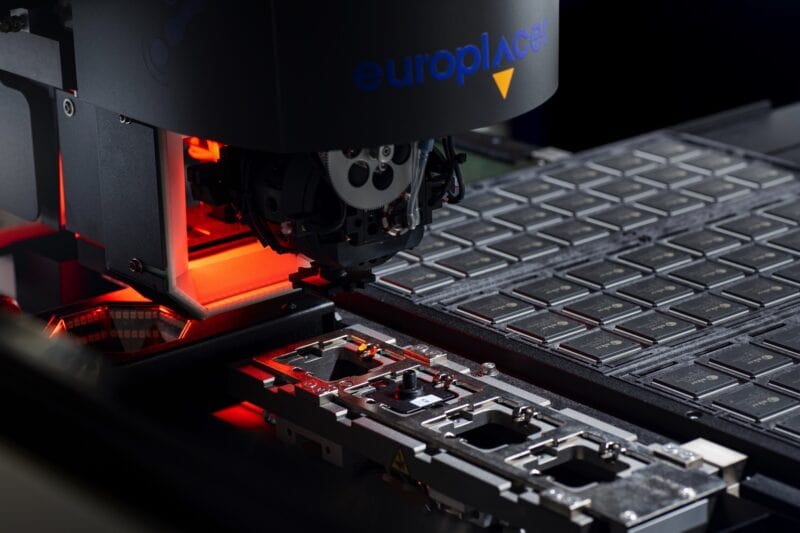

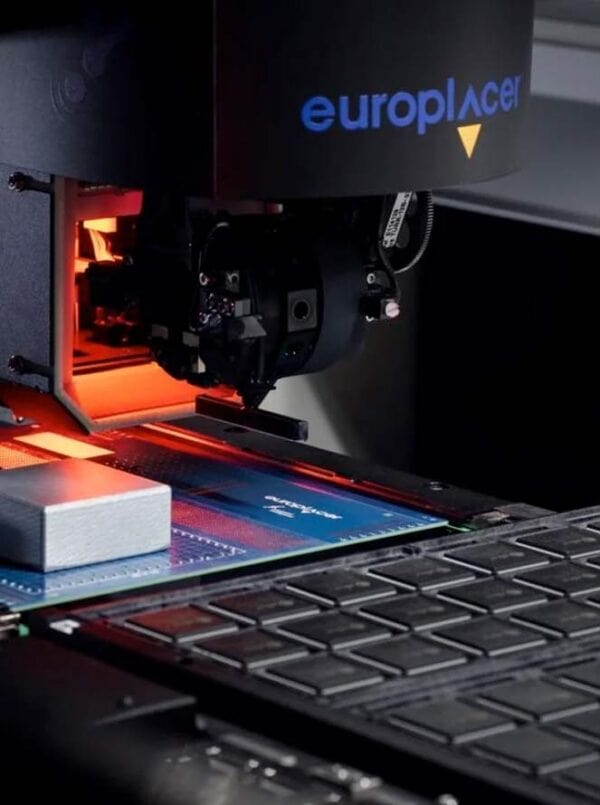

Tornado Head
The ii-N2 has a double rotary turret head with 8 or 12 smart nozzles

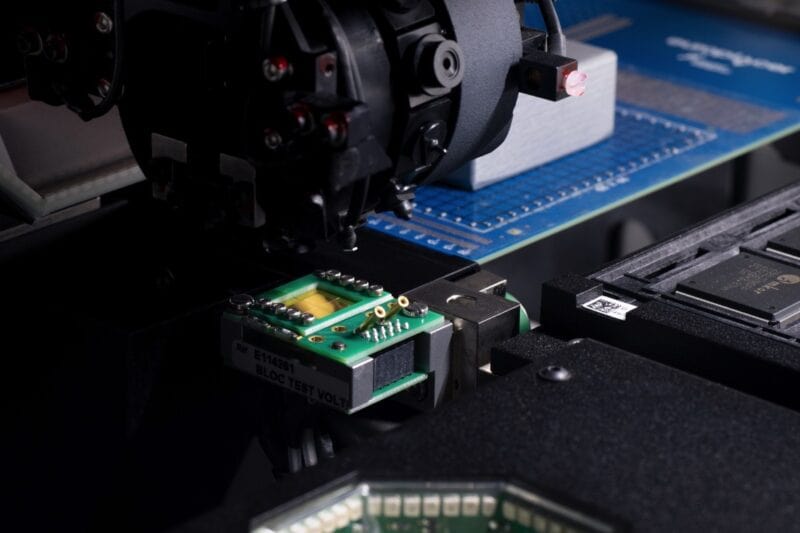

Electrical Tester
Electrical component testing with independently verifiable calibration (UKAS / NIST / PTB…etc)

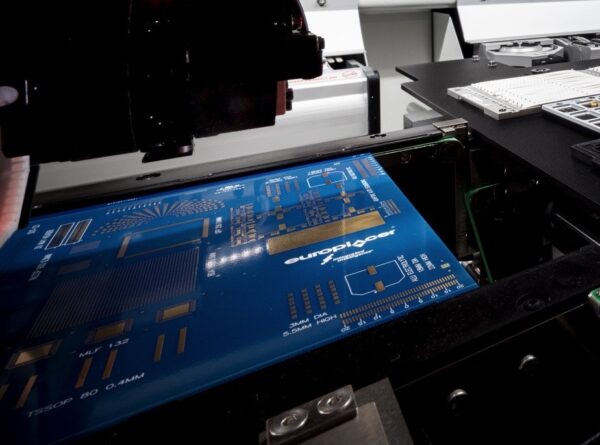

Intelligent conveyor
Increase productivity without mechanical steps, whilst automatically optimising board stop position for maximum productivity

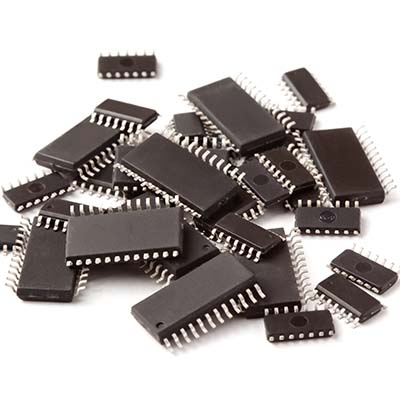

No Component Limitations
Every nozzle position can place all and any component types, for real line balancing and no limitations

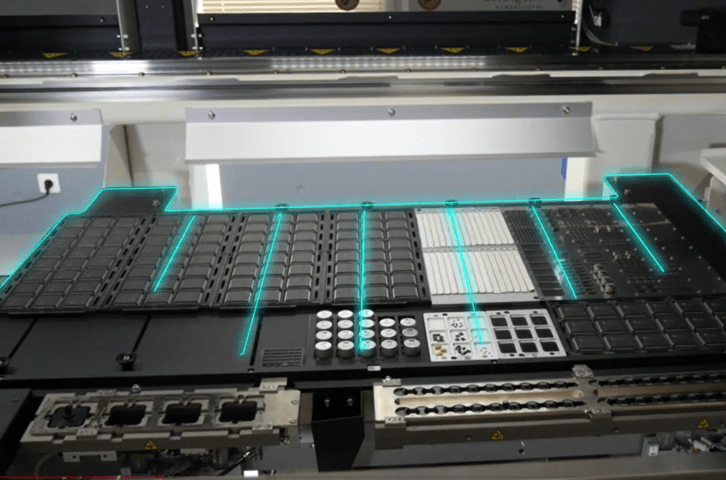

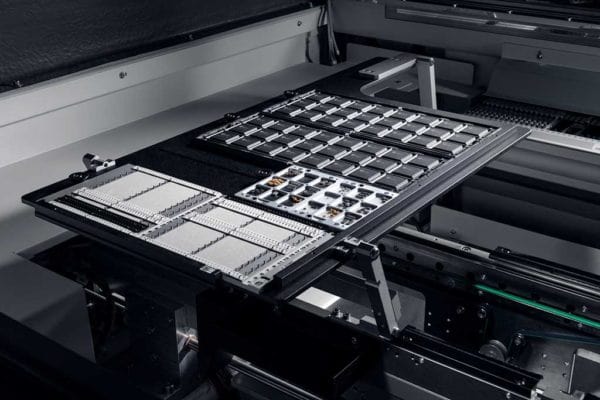

Internal Matrix Trays
The ii-N2 supports up to 3 internal matrix trays to support Jedec and loose components

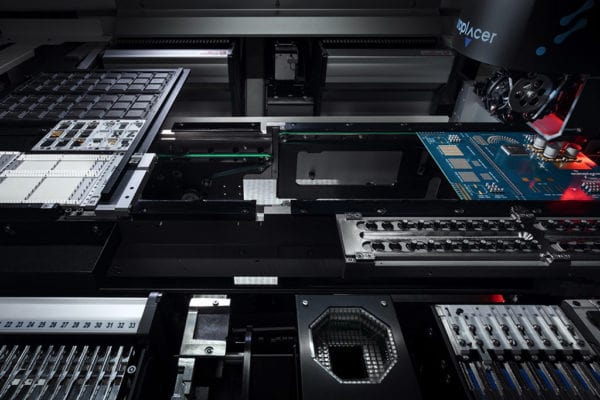

Range of feeders / nozzles
Odd form & smart nozzle banks
* Optional extras
Technical Data
| ii-N2 | |
|---|---|
| Component Range | 03015m to 50mm x 50mm |
| (With fixed camera) | 99mm x 99mm* |
| Max Component Height | 34mm (31mm with 12 nozzles) |
| Feeder: Tapes | 4mm to 104mm |
| Feeder: Capacity | 264 positions x 8mm |
| Feeder: Internal | 3 x Matrix trays |
| Placement Heads | 2 x 8 or 12 nozzle Tornado head |
| Max PCB Size | 700mm x 600mm |
| Max Placement Rate | 30,780cph** |
| Placement Accuracy | 22µm (QFPS) TO 46µm (CHIPS) @ 3 Sigma |
* with Tornado 8 nozzles with Matrix Tray distributor with less shims or auto tray loader with specific tray support
** with 12 nozzle position – Optimum test conditions in factory
Options / Accessories
Machine
- Fixed upward-looking camera for larger and very fine pitch components
Software and Programming
- Offline preparation
- Stock Management
- Full Traceability
- PROMON Software

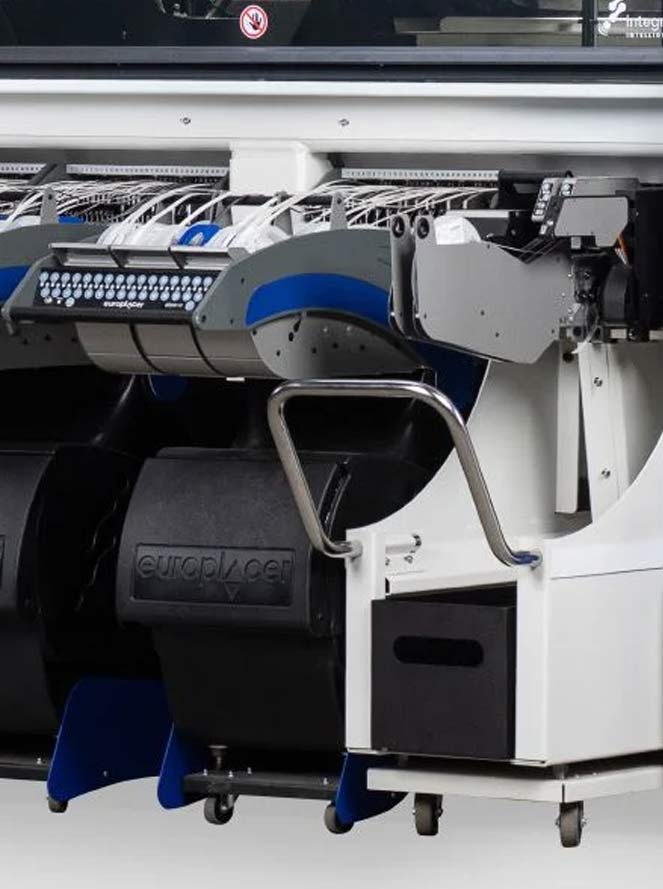

Feeders
- Barcode feeders
- Bulk feeders
- Ball feeders for BGAs
- Flux feeder & PoP processing
- Tray sequencer
