ii-P7 Screen Printer

Advanced Printing Solutions

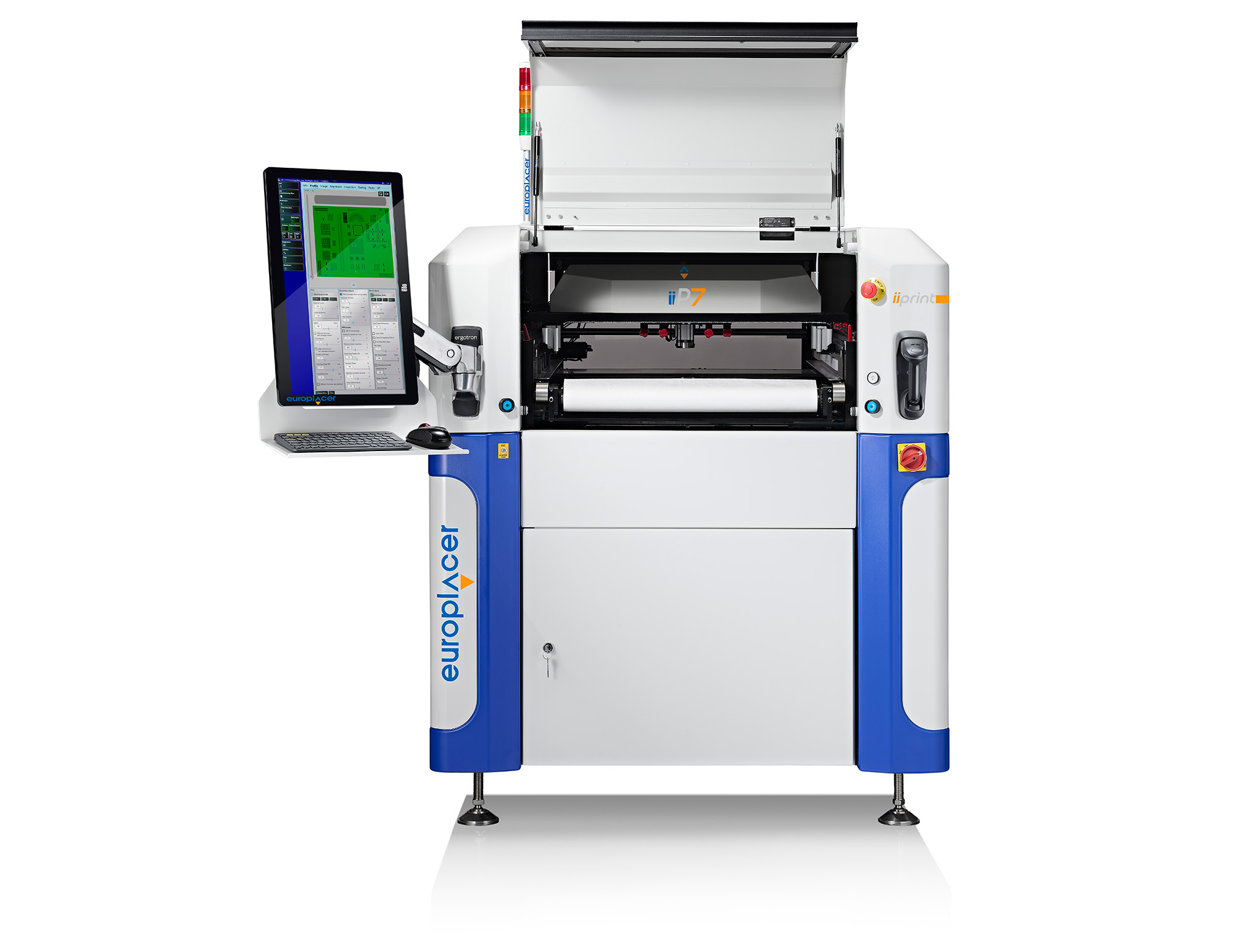

The Europlacer ii-P7 is a top-tier low maintenance, high performance screen printer.

It incorporates 1-micron linear encoders on every axis, ensuring consistent precision to deliver perfectly defined prints.

Speed

As fast as 5 seconds cycle time
Fast set-up

Flexibility

Easy changeover
Prototyping
Large print area

Accuracy

Exceptional repeatability
20 µm @ 6 sigma 2Cpk
Dual Roving Camera

Controlled by our advanced ii-PS software, the ii-P7 seamlessly integrates into both high mix and high volume production environments.

Furthermore, it provides functionalities for supplemental solder paste and adhesive dispensing via ADu+ and supports the application of barcode labels through S-Track, enabling comprehensive process traceability from the very start of the production process.

PDU - Paste Dispense Unit

PDu - Paste Dispense Unit

Loading USC cassette

Single Pass Cleaning Cassette

ADu+ - Advanced Dispense Unit

S-Track Barcode Placement

30mm Underside PCB Tooling Gap

Stencil Paste Bead Management

Features
smt screen printer
As fast as 5 Second Cycle Time

The standard cycle time is 9 seconds. A software update in Velocity or Velocity+ mode offers a cycle time of 7 or 5 seconds, with the same level of accuracy.

Loading USC cassette
Single pass under screen cleaner

Our single pass cleaner reduces cleaning time. The quick change cartridge improves changeover speed.

PDU - Paste Dispense Unit

PDu (Paste Dispense Unit)

The Paste Dispense unit, or PDu, allows for controlled amounts of solder paste to be automatically applied to the stencil. Paste can be intelligently dispensed from 600g tubes at the beginning, or during, a production run.

SmartCal2

SmartCal2 collects 88% more data for ultimate accuracy and repeatability in just 90 seconds

ADu+

Deploy solder and paste with precision

Pneumatic print head
Pneumatic printhead

A stencil printing system that adjusts pressure in real time. No lag, no calibration, no mechanical wear.

S-track label placement

S-Track Label Placement

Barcode placement for complete process traceability.

Technical Data
  ii-P7
Max Board Size 610mm (x) x 515mm (y)
Min Board Size 45mm (x) x 45mm (y)
Max PCB Weight 1Kg (2.2lb)
PCB Thickness

0.2mm (0.008”) to 8mm (0.315”)
Full Process Repeatability 20µm @ 6 sigma 2Cpk
Print Speed 5-250mm/s
